EL3362 | EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 5/10 V DC, with 2 x digital combi
Steady Ch1
Warning Ch1
Error Ch1
Input Ch1
Output Ch1
Steady ch 2
Warning ch 2
Error ch 2
Input ch 2
Output ch 2
+24 V DC
EL336x, EL336x-0100: EtherCAT Terminals for multi-channel measuring bridge detection with integrated power supply.
EL3362 | EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 5/10 V DC, with 2 x digital combi

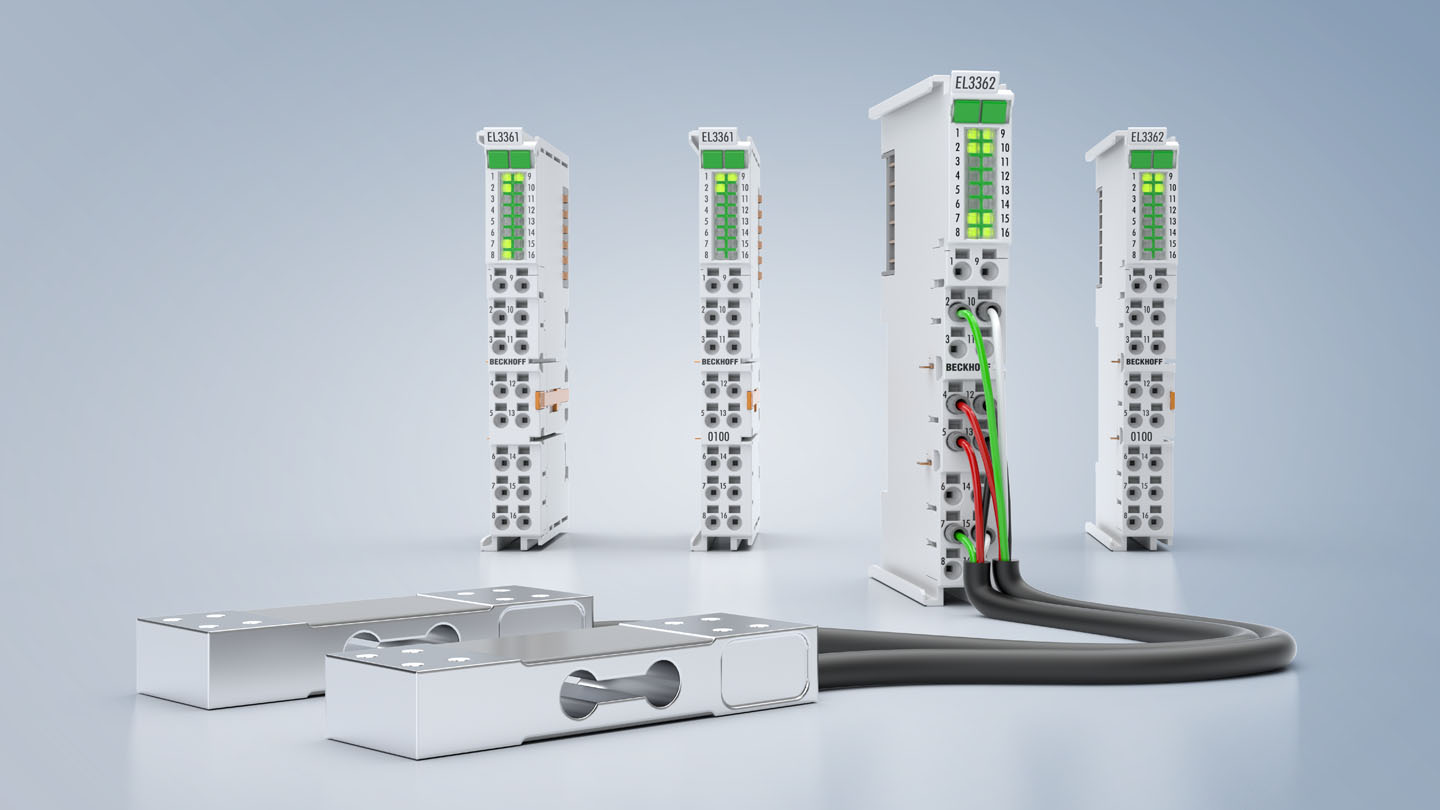

EL336x, EL336x-0100: EtherCAT Terminals for multi-channel measuring bridge detection with integrated power supply.
EtherCAT Terminals for the connection of load cells

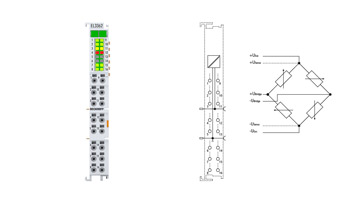

The EL3362 analog input terminal enables the direct connection of resistor bridges (strain gauges) or load cells using the 4-wire or 6-wire connection technique. It processes the ratio of the bridge voltage UBridge to the supply voltage USense and outputs the final load value as a process value based on the terminal settings. This enables precise recording of weights, torques, and vibrations with a sampling rate of 10,000 samples per second.
The integrated bridge supply is generated from the 24 V of the power contacts, with a choice between 5 V and 10 V DC in the configuration.
The terminal also has a combined digital input/output per channel; the function for the digital connection point must be specified in the configuration. The digital input can be used for functions such as taring. The digital output can be switched on the basis of local evaluations in the terminal depending on the measured value of the resistance bridge.
Product status:
product announcement | estimated market release 2nd quarter 2025
Product information
| Technical data | Analog input |
|---|---|
| Number of inputs | 4, for 2 resistor bridge in full bridge technology |
| Function | resistance bridge, strain gauge (SG), voltage measurement |
| Wiring | 4-wire, 6-wire |
| Ground reference (input) | differential |
| Max. sampling rate | 10 kSps |
| Sampling type | simultaneous |
| Internal resistance | > 1 MΩ |
| Supported nominal sensitivity | 0.5…320 mV/V |
| Sensor supply | 10 V DC from power contacts |
| Measuring range, nominal | USense: ±12 V | UBrdge: ±4 V |
| Measuring range, technical | USense: ±12.84 V | UBridge: ±4.28 V |
| Resolution | 24 bit |
| Measurement error/uncertainty | < ±0.05% |
| Electrical isolation channel/channel | no |
| Operating temperature | 0…55°C |
| Housing data | EL-12-16pin |
|---|---|
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
